Features:

1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current,

discharge current accurate real-time display, power generation at a glance.

2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection

during charging, bidirectional focusing tracking.

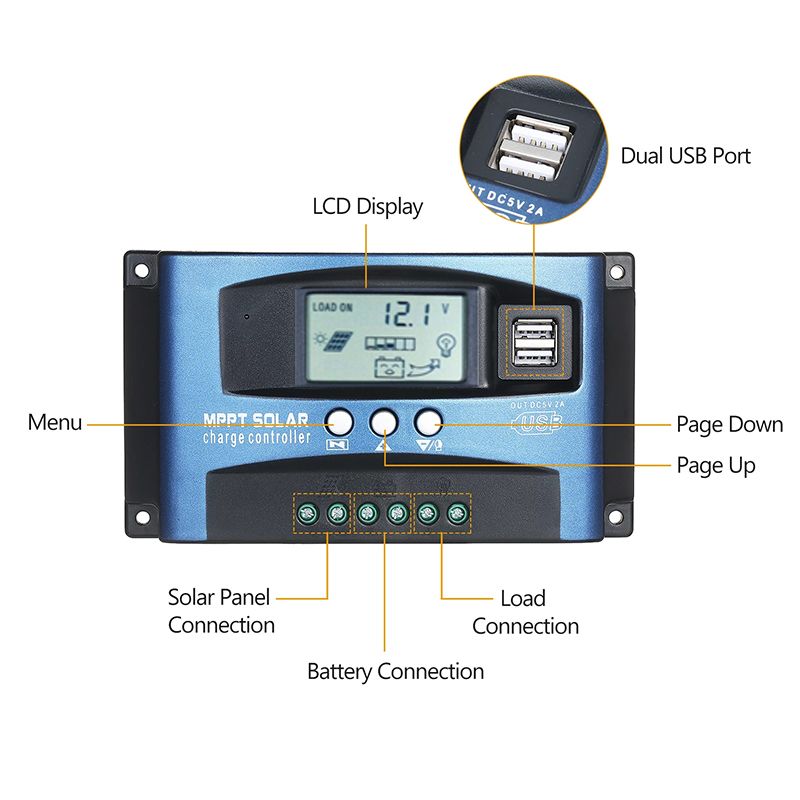

3. Large-sn LCD display, adjustable charging and discharging parameters. UItra-wide charge

and discharge adjustable, as long as you understand the characteristics of the battery set its

corresponding charging parameters, you can charge a battery. When the output is off, the time

can be adjusted, which is more convenient. (on the market, there is no point adjustment)

4. Acomplete three-phase charge management, effectively protect the battery, the battery is more

durable.

5. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection

protection,when the fault is eliminated, the controller automatically recovers, does not damage

the device.

6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.

Specifications

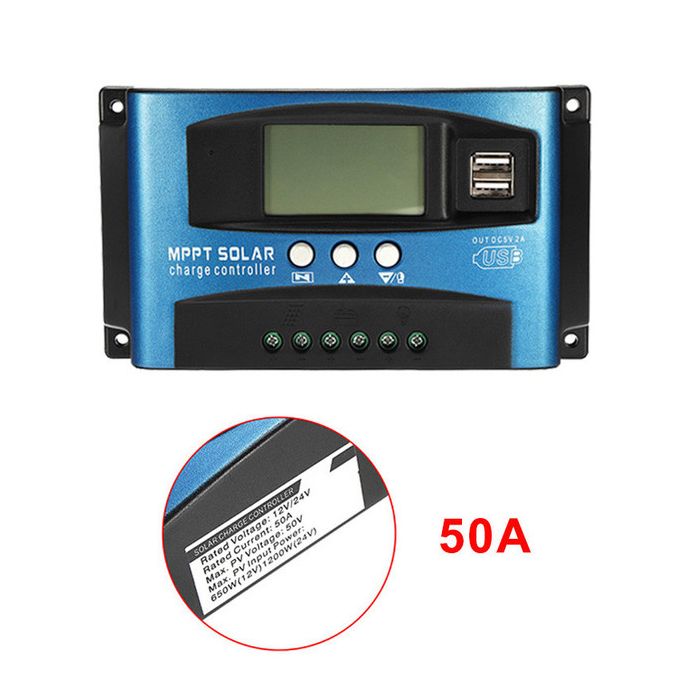

1. Rated voltage: 12/24V

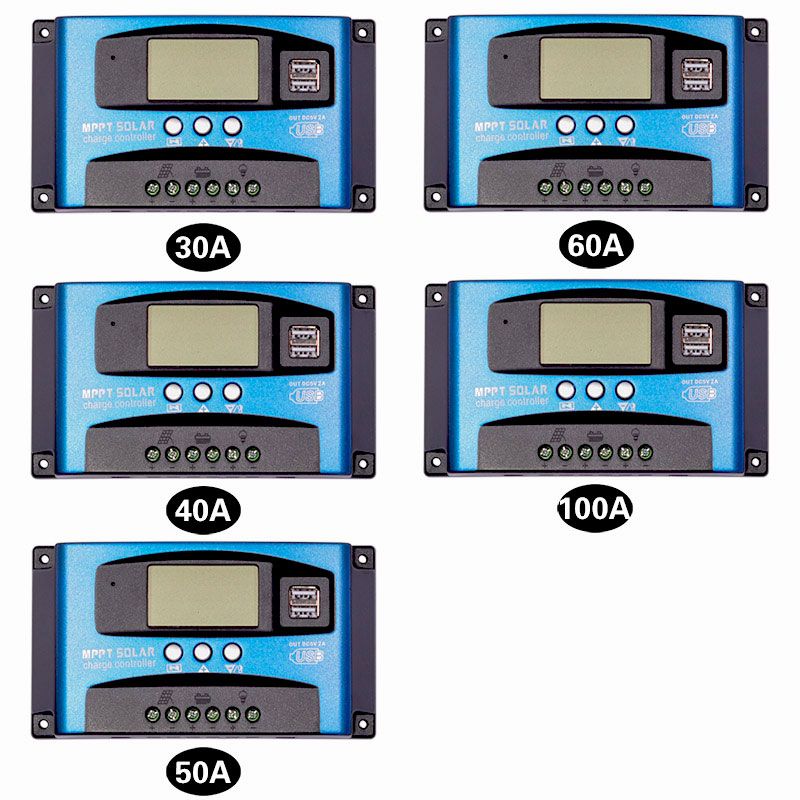

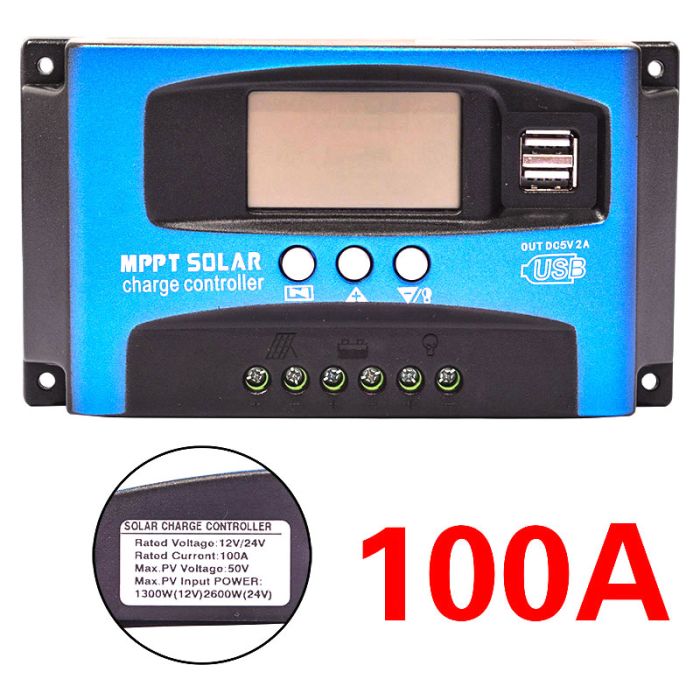

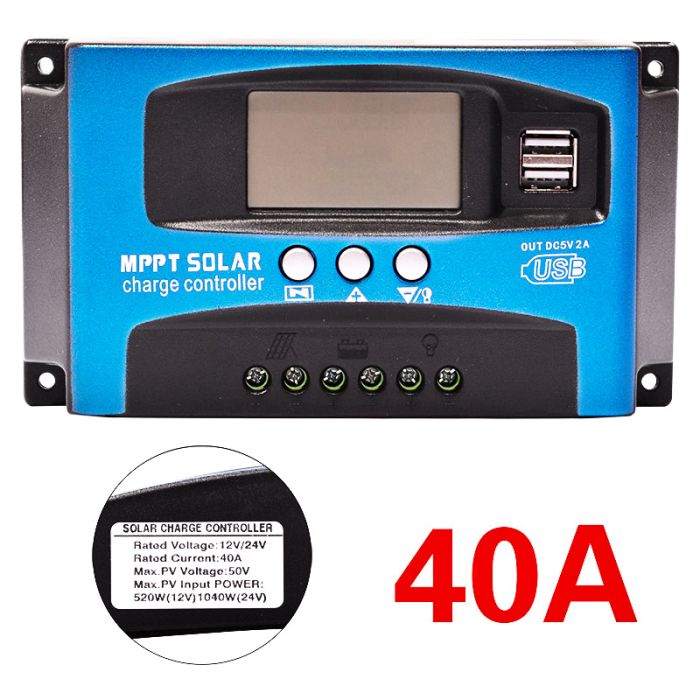

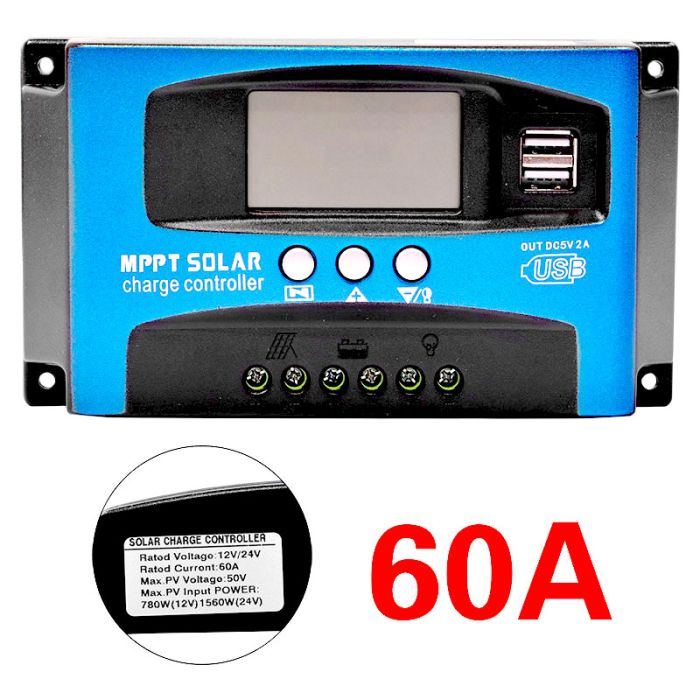

2. Rated current: 30/40/50/60/100A

3. Max. PV voltage: 50V

4. Max. PV input power: 750W(12V) / 1500W(24V)

Function:

1. Always keep the battery on fill voltage condition.

2. Prevent the battery from over-charging.

3. Prevent the battery from over-discharging.

4. Prevent the battery from reverse charging to solar panels during

nights.

5. Reverse Polarity Protection for Battery

6. Reverse Polarity Protection for Solar Panels

7. When the battery voltage is low, the controller will

automatically cut off the load from the system. If the voltage of

battery is back to normal and the load will restart working.

8. Thunder protection

9. According to the battery voltage grade, the controller can

automatically set charge-off voltage, the load-off voltage, the

load- restore voltage. (The parameter is default under 25

condition, locked by the CPU procedure, cannot adjust.)

10. The controller will automatically compensate the temperature of

the charging voltage according to the changes of ambient temperature.

Package Includes:

1 x Solar Panels Battery Charge Controller

1 x User Manual

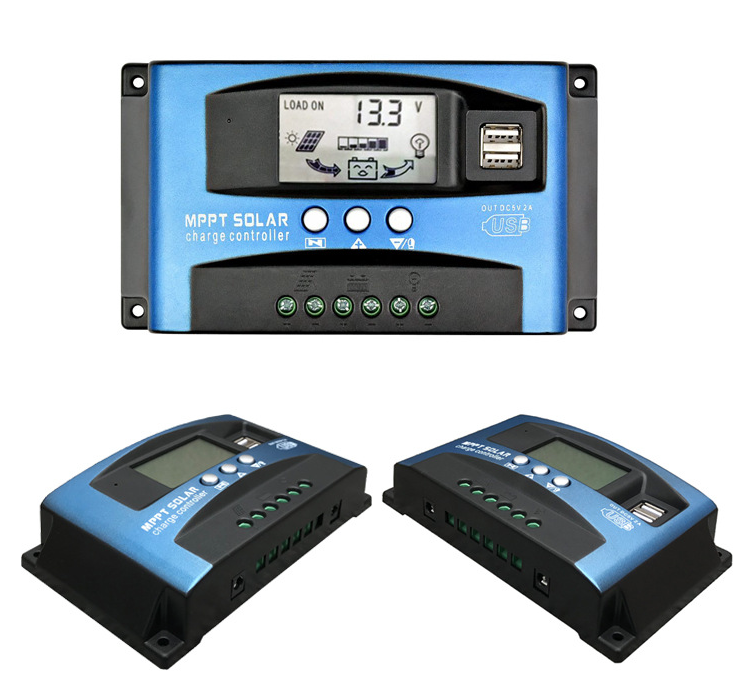

MPPT Solar Charge Controller 30/40/50/60/100A Solar Controller Solar Panel Battery Regulator Dual USB 5V LCD Display
